2400MHz Wide band Tap & Splitter

SDE-1 (2)-Series / SSE-2A (3AN, 4AN)
SSE-2J / SSE-2C (4CN) / SSE-2N (4N)

  • 2400MHz 2, 3, 4-way splitters & 1, 2-way taps covering VHF/UHF and satellite I.F
  • RFI shielding zinc alloy die-casting case with CuSn plated
  • Power passing: 500mA / 15V DC , 30V AC
  • Various configuration available

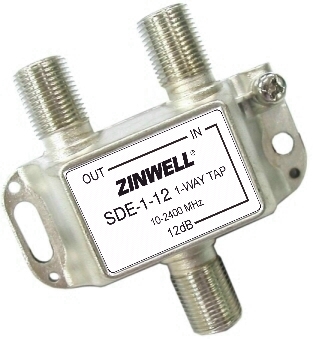

SDE-1- series
SDE-2- series N

40 ~ 2400 MHz 1 & 2-Way Tap

• Wide band taps covering VHF/UHF and satellite I.F. bands
• In to Out AC/DC power passing provided
• 4 tap values available each (12, 16, 20 & 24 dB)
• Grounding port provided
• RFI shielding zinc alloy die-casting case with CuSn plated

SSE-2A
SSE-3AN
SSE-4AN

5 ~ 2400 MHz 2, 3, 4-Way Splitter with All-Ports Unidirectional Power Pass

• Wide band power splitters (dividers) covering VHF/UHF and satellite I.F. bands
• 2, 3, 4 output ports available
• All ports power passing, diode protected
• RFI shielding zinc alloy die-casting case with CuSn plated

SSE-2J

2-Way Splitter with One-Port Unidirectional Power Pass

• 5 ~ 2400 MHz wide band splitter covering VHF/UHF and satellite I.F bands
• One port power passing, diode protected
• RFI shielding and zinc alloy die-casting case with CuSn plated

SSE-2C
SSE-4CN

5 ~ 2400 MHz 2, 4-Way Splitter, All-ports Bi-Directional Power Pass

• Wide band power splitters (dividers) covering VHF/UHF and satellite I.F. Bands
• All ports power passing
• RFI shielding and zinc alloy die-casting case with CuSn plated
• With power chokes to accept max. electric current: 500 mA, 15 V DC, 30 V AC

SSE-2N
SSE-4N

2, 4-Way Splitter with One-Port Bi-Directional Power Pass

• Wide band splitter covering VHF/UHF and satellite I.F bands
• One port power pass provided
• RFI shielding and zinc alloy die-casting case with CuSn plated
• With a power choke to accept max. electric current: 500 mA, 15 V DC, 30 V AC

無標題文件
 Description Freq. Range (MHz) SDE-1-12 SDE-1-16 SDE-1-20 SDE-1-24
 Insertion Loss (dB)    40 ~ 860  1.3 ± 0.6 1.3 ± 0.6 1.3 ± 0.6 1.3 ± 0.6
 950 ~ 1750  1.8 ± 1.0 1.8 ± 1.0 1.8 ± 1.0 1.8 ± 1.0
 1750 ~ 2050  2.5 ± 1.0 2.5 ± 1.0 2.5 ± 1.0 2.5 ± 1.0
 2050 ~ 2150  3.0 ± 1.5 3.0 ± 1.5 3.0 ± 1.5 3.0 ± 1.5
 2150 ~ 2400  3.5 ± 1.5 3.5 ± 1.5 3.5 ± 1.5 3.5 ± 1.5
Tap Loss(dB)    40 ~ 860  12.5 ± 1.5 16 ± 1.5 20 ± 1.5 24 ± 1.5
 950 ~ 1750  12.5 ± 1.5 16 ± 1.5 20 ± 1.5 24 ± 1.5
 1750 ~ 2050  12.5 ± 2.0 16 ± 2.0 20.5 ± 2.0 24.5 ± 2.0
 2050 ~ 2150  13.5 ± 2.0 16 ± 2.0 21 ± 2.0 24.5 ± 2.0
 2150 ~ 2400 14 ± 2.5 16.5 ± 2.5 21.5 ± 2.5 25 ± 2.5
Isolation (TAP-OUT)(dB,min.)   40 ~ 860  20 25 25 25
 950 ~ 2050  18 18 20 20
 2050 ~ 2150  16 16 18 20
 2150 ~ 2400  14 14 16 18
 Return Loss (dB,min.)    40 ~ 860   18 *  18 *  18 *  18 *
 950 ~ 1750  10 10 10 10
1750 ~ 2050 8 8 8 8
 2050 ~ 2150  6 6 6 6
 2150 ~ 2400  6 6 6 6
DC Pass  (500 mA max.)  IN ←→ OUT Yes
 IN ←→ TAP None
Impedance    75 W
Connectors    "F" Female
Dimensions (with connectors)  56 x 53 x 21 mm
Weight   45 g
無標題文件
 Description   Freq. Range (MHz) SDE-2-12N SDE-2-16N SDE-2-20N SDE-2-24N
Insertion Loss (dB)Insertion Loss (dB)     40 ~ 860  2 ± 1.5 1.5 ± 1.0 1 ± 0.6 1 ± 0.6
 950 ~ 1750  2.5 ± 1.5 2 ± 1.0 1 ± 1.0 1 ± 1.0
 1750 ~ 2150  2.5 ± 1.5 2 ± 1.0 1.5 ± 1.0 1.5 ± 1.0
 2150 ~ 2400 2.5 ± 2.0 2 ± 1.5 2 ± 1.0 2 ± 1.0
Tap Loss (dB)     40 ~ 860  12 ± 1.5 16 ± 1.5 20 ± 1.5 24 ± 1.5
 950 ~ 1750  12 ± 2.5 16.8 ± 1.5 20 ± 1.5 24 ± 1.5
 1750 ~ 2150  12 ± 2.5 17 ± 2.0 20 ± 1.5 24 ± 1.5
 2150 ~ 2400 13 ± 2.5 17 ± 2.0 21 ± 2.0 24 ± 2.0
Isolation(min./ dB)    Tap - Out  40 ~ 860 20 25 25 25
   950 ~ 2050  20 25 25 25
   2050 ~ 2400 18 20 20 20
Tap - Tap  40 ~ 860  18 18 18 18
   950 ~ 1750  16 16 16 16
   1750 ~ 2400 14 16 16 16
Return Loss(min./ dB)  In/ Out  40 ~ 860 12 12 12 12
   950 ~ 2400  8 8 10 8
Tap  40 ~ 860 12 12 12 12
   950 ~ 2400  8 8 10 8
DC Pass(1A max.)   IN ←→ OUT   Yes
 IN ←→ TAP   None
Impedance    75 W
Connectors    "F" Female
Dimensions (with connectors)    85.6 x 54 x 18.4 mm
Net Weights   98 g
無標題文件
Description   Freq. Range (MHz) SSE-2A SSE-3AN SSE-4AN
Insertion  Loss (dB)         5 ~ 40 4 ± 1.0   7.5 ± 1.0   8.5 ± 1.0
  40 ~ 860  4 ± 1.0   7 ± 1.0   7.5 ± 1.0
  950 ~ 1750  5 ± 1.5   8 ± 1.0   8.5 ± 1.0
  1750 ~ 2150  6 ± 2 8.5 ± 1.5 9 ± 1.0
  2150 ~ 2400  7 ± 2.5 9 ± 1.5 9.5 ± 1.5
Isolation (dB)            5 ~ 40 8 min. 16 min. 16 min.
  40 ~ 860  16 min. 16 min. 20 min.
  950 ~ 1750 15 min. 14 min. 16 min.
  1750 ~ 2150 14 min. 14 min. 16 min.
  2150 ~ 2400 12 min. 14 min. 16min.
Return Loss (dB)          5 ~ 40 16 min. (IN) ;
10 min. (OUT)
8 min. 8 min.
  40 ~ 860  18 * 12 min. 12 min.
  950 ~ 1750  8 min. 10 min. 10 min.
  1750 ~ 2150 8 min. 10 min. 10 min.
  2150 ~ 2400 8 min. 10 min. 10 min.
DC Pass  IN → OUT   None
 OUT → IN   500 mA max.
 OUT ←→ OUT None
Connectors     "F" Female
Impedance     75 Ω
Dimensions (with connectors, mm) 56 x 53 x 21   85.6 x 54 x 18.4  85.6 x 54 x 18.4
Net Weight     45 g 98 g 103 g
無標題文件
Description Freq. Range (MHz) SSE-2J
Insertion Loss         5 ~ 860  4 ± 1 dB
 950 ~ 1750  5 ± 1.5 dB
 1750 ~ 2050  6 ± 2 dB
 2050 ~ 2400 7 ± 2.5 dB
Isolation           5 ~ 40  8 dB min.
 40 ~ 860  16 dB min.
 950 ~ 1750  15 dB min.
 1750 ~ 2050 14 dB min.
 2050 ~ 2400 12 dB min.
Return Loss         5 ~ 40  16 dB min. (IN) ;
10 dB min. (OUT)
 40 ~ 860  18 dB *
 950 ~ 2150 8 dB min.
 2150 ~ 2400 8 dB min.
Power Pass  IN ← Power pass OUT2 Port 500 mA, 15 VDC max.
 IN ←→ OUT1   None
 OUT1 ←→ OUT2   None
Screening (according to EN50083-2) class A
Impedance     75 Ω
Connectors     "F" Female
Dimensions     56 x 53 x 21 mm
Net Weight     45 g
無標題文件
 Description  Freq. Range (MHz)   SSE-2C
 Insertion Loss   5 ~ 860    4 ± 1.0 dB
 950 ~ 1750    5 ± 1.5 dB
 1750 ~ 2050    6 ± 2.0 dB
 2050 ~ 2400    7 ± 2.5 dB
Isolation       5 ~ 40   8 dB min.
 40 ~ 860    16 dB min.
 950 ~ 1750    15 dB min.
 1750 ~ 2050    14 dB min.
 2050 ~ 2400    12 dB min.
 Return Loss       5 ~ 40   16 dB min. (IN)
10 dB min. (OUT)

 40 ~ 860    18 dB *
 950 ~ 2150   8 dB min.
 2150 ~ 2400   8 dB min.
 Power Pass  OUT ←→ IN, OUT ←→ OUT   500 mA max.
 Screening  (according to EN50083-2)   class A
 Impedance       75 Ω
 Connectors     "F" Female
 Dimensions     56 x 53 x 21 mm
 Net Weight     45 g
無標題文件
 Description    Freq. Range (MHz)   SSE-4CN
 Insertion Loss       5 ~ 15   8.5 ± 1 dB
15 ~ 40   7.5 ± 1 dB
40 ~ 860    7.5 ± 1 dB
950 ~ 1450    8 ± 1 dB
1450 ~ 1750    8.5 ± 1 dB
1750 ~ 2150    9 ± 1 dB
2150 ~ 2400  9.5 ± 1.5 dB
 Isolation      5 ~ 15   16 dB min.
15 ~ 40   16 dB min.
40 ~ 860    20 dB min.
950 ~ 2400   16 dB min.
Return Loss     5 ~ 15   8 dB min.
15 ~ 40   8 dB min.
40 ~ 860   12 dB min.
950 ~ 2400   10 dB min.
 DC Pass

OUT ←→ IN,

OUT ←→ OUT

    500 mA max.
 Screening  (according to EN50083-2)   class A
 Impedance       75 Ω
 Connectors     "F" Female
 Dimensions     85.6 x 53.4 x 20.6 mm
 Net Weight     100 g
無標題文件
Description Freq. Range (MHz) SSE-2N
Insertion Loss         5 ~ 860  4 ± 1 dB
 950 ~ 1750  5 ± 1.5 dB
 1750 ~ 2050  6 ± 2 dB
 2050 ~ 2400 7 ± 2.5 dB
Isolation           5 ~ 40  8 dB min.
 40 ~ 860  16 dB min.
 950 ~ 1750  15 dB min.
 1750 ~ 2050 14 dB min.
 2050 ~ 2400 12 dB min.
Return Loss        5 ~ 40  16 dB min. (IN) ;
10 dB min. (OUT)
 40 ~ 860  18 dB *
 950 ~ 2150 8 dB min.
 2150 ~ 2400 8 dB min.
Power Pass  IN ←→ Power pass OUT2 Port 500 mA max.
 IN ←→ OUT1   None
 OUT1 ←→ OUT2   None
Screening (according to EN50083-2) class A
Impedance     75 W
Connectors     "F" Female
Dimensions     56 x 53 x 21 mm
Net Weight     45 g
無標題文件
Description Freq. Range (MHz) SSE-4N
Insertion Loss (dB)           10 ~ 10  8.5 ± 1 dB
 10 ~ 860  7.5 ± 1 dB
 950 ~ 1450  8.0 ± 1 dB
 1450 ~ 1750  8.5 ± 1 dB
 1750 ~ 2150  9.0 ± 1 dB
 2150 ~ 2400 9.5 ± 1.5 dB
Isolation         5 ~ 40  16 dB mn.
 40 ~ 860  20 dB min.
 950 ~ 2150  16 dB mn.
 2150 ~ 2400 16 dB mn.
Return Loss             5 ~ 10 4 dB min.
 10 ~ 15 6 dB min.
 15 ~ 40  8 dB min.
 40 ~ 860  12 dB min.
 950 ~ 2150 10 dB min.
 2150 ~ 2400 10 dB min.
Power Pass  IN ←→ Power pass OUT4 Port   500 mA max.
 IN ←→ OUT   None
 OUT ←→ OUT   None
Screening (according to EN50083-2) class A
Connectors     "F" Female
Impedance     75 W
Dimensions     85.6 x 53.4 x 20.6 mm
Net Weight     103 g
