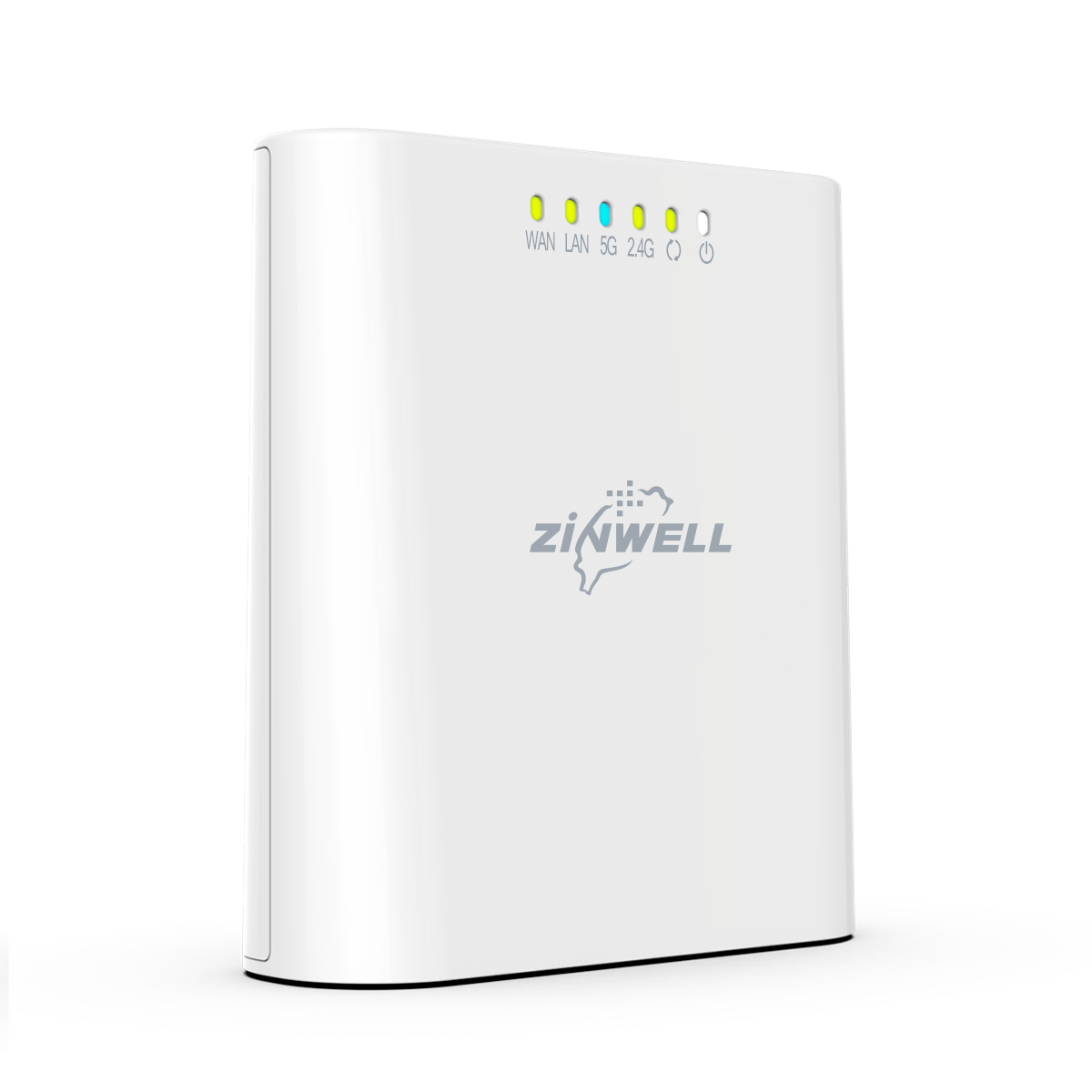

Wi-Fi Mesh Controller

ZWR-A432

  • Router mode : SSPI Firewall, DMZ, Port Fordwarding, Port Triggering, Access Client List, Multicast, IGMP Snooping
  • Support Wi-Fi Alliance “EasyMesh” Multi-AP Specification v1.0 and Future firmware upgradable to Wi-Fi CERTIFIED EasyMesh™
  • Enable Multi VLAN tagging on WAN interface
  • Support Deliver & prioritize multicast stream over LAN/Wi-Fi/Mesh
  • Support TR-069 and API integration for remote management
  • (Optional) Can be built in Smart Antenna to be 30% throughput enhanced, Up to 20 dB in interference rejection, 99.9% detection of intruders
  • Remote management (TR-069 & TR-369)
Wi-Fi Technology
Bandwidth

2.4GHz: 20/40 MHz, up to 2T2R2SS

5GHz: 20/40/80 MHz, for 2T2R2SS

Network Standards
Wi-Fi 802.11 a/b/g/n/ac
Ethernet 10Base-T, 100Base-TX, 1000Base-T
Encryption
Wi-Fi WPA, WPA2 (802.11i), WPS
Antenna
Internal 2 antennas
Power
Input voltage (+/- 5%) Power Adapter DC 12V, 1.5A through DC Jack
Power Rating DC 12V, 1.5A
System
RAM DDR3 SDRAM 128MB
Flash SLC NAND Flash 128MB
Front Panel
LED Power, WAN, LAN, WPS, 2.4G/5G Wi-Fi
Bottom Side panel
Power receptacle DC jack x1, for DC plug Φ2.5 OD: Φ5.5
Reset Button RESET to factory default
WPS Button WPS PBC (Push-Button Connection)
WAN Ethernet One 10/100/1000 Mbps RJ-45
LAN Ethernet port One 10/100/1000 Mbps RJ-45
Dimensions
Casing Size 122.70mm x 119.60mm x 39.60mm
Ambient
Operating Temperature -5˚C~ +55˚C
Storage Temperature -10˚C ~ +60˚C

Specifications are subject to change without notice
