60GHz mmWave PtP & PtMP Radio Link
ZWR-V628-C41X2 (LS & LL)
- Up to 900+ Mbps Throughput
- Up to 5 km Transmission Distance
- High-Gain Lens Antenna Design
- Dual Gigabit Ethernet with PoE Out
- Bluetooth 6.0 (BLE) for Easy Provisioning
- IEEE 802.11ad 60 GHz
- PtP / PtMP Deployment
- IP46 Outdoor Design
- WPA3 Enterprise Security
60GHz mmWave
PtP & PtPM Radio Link
High-Gain Beamforming Design for
Long-Distance Connectivity
Multi-Gigabit Data Rates
Phase Array Antenna
5 KM Gigalink
WPA3 Enterprise Security
IP46 Waterproof Rating

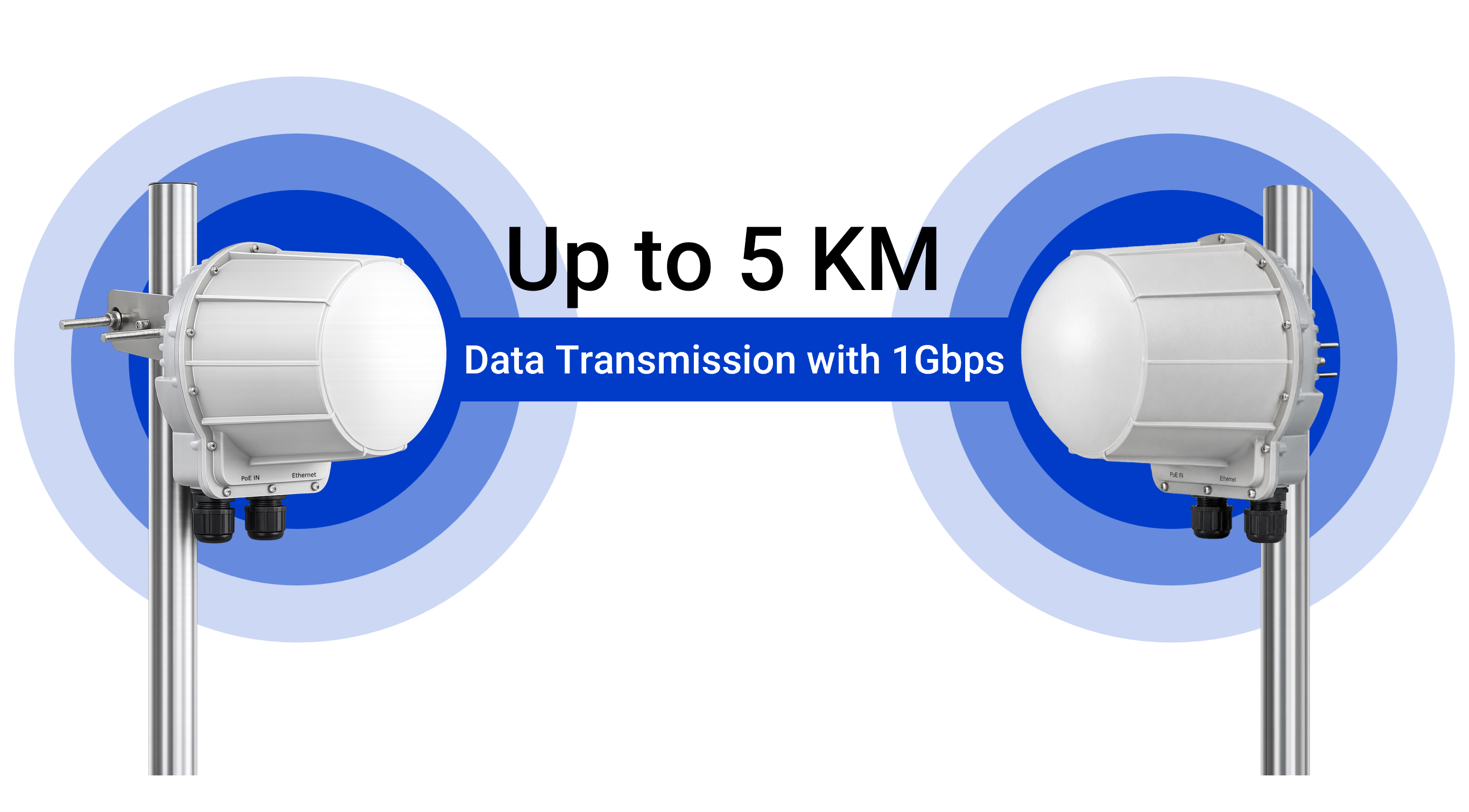

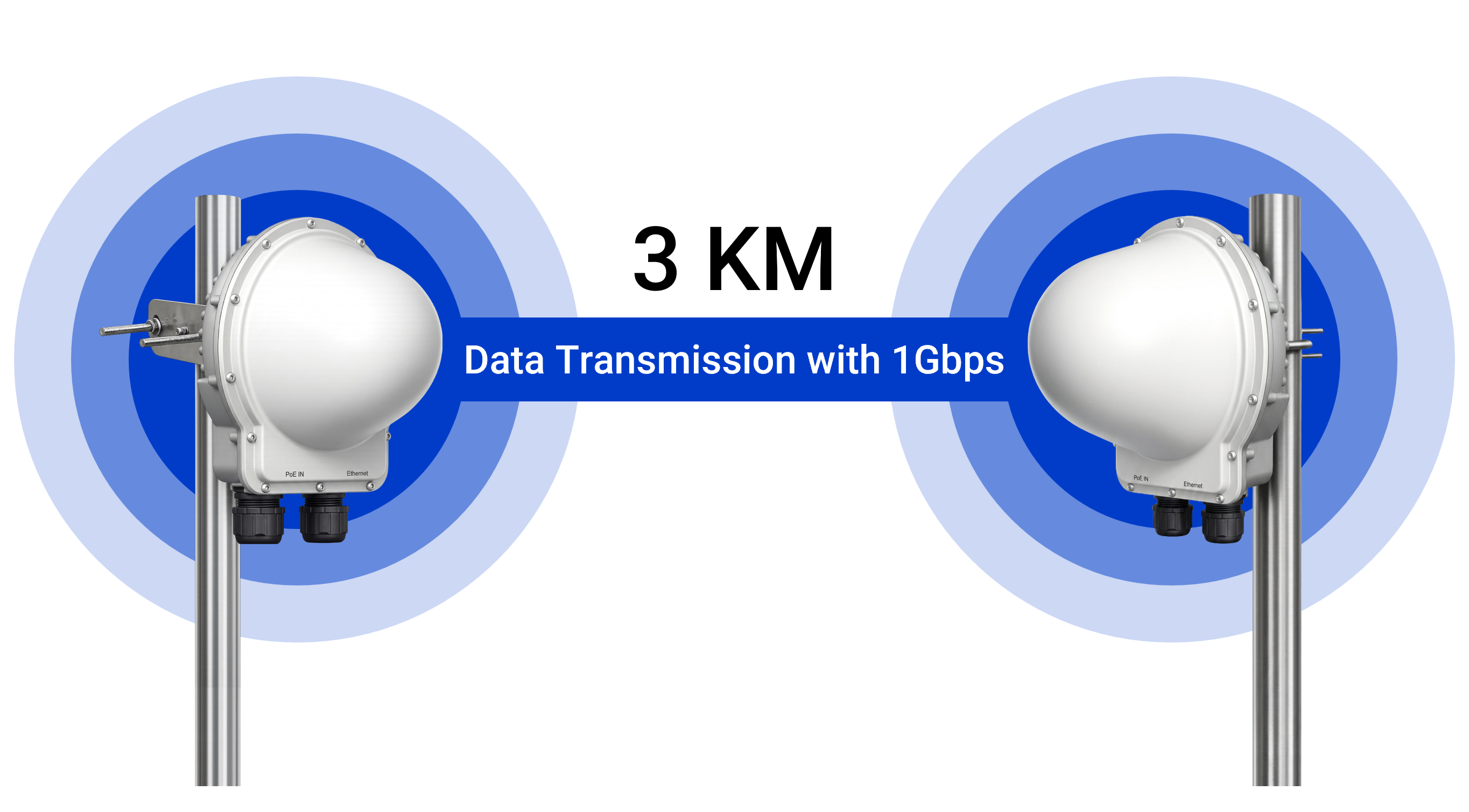

Point-to-Point Wireless Network

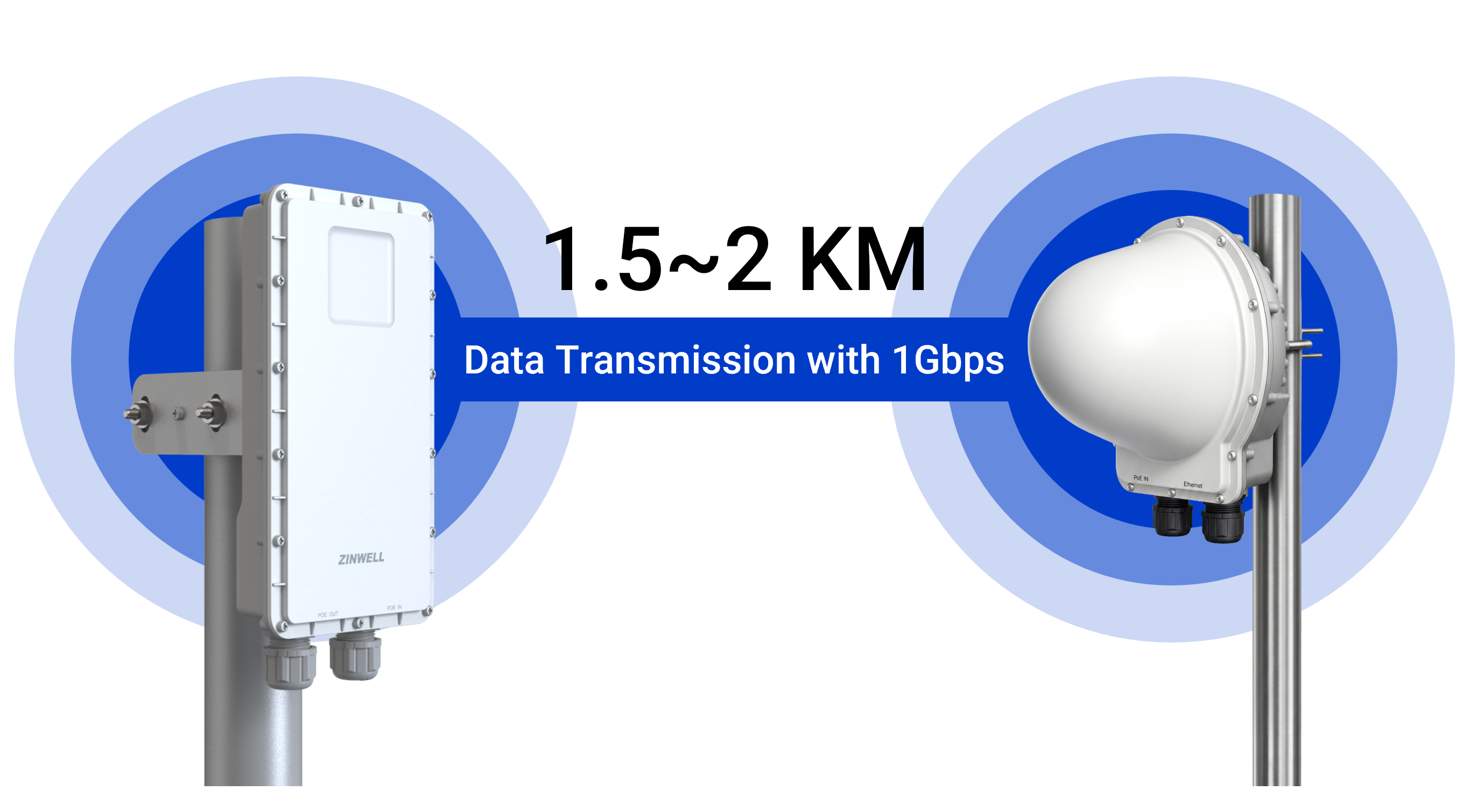

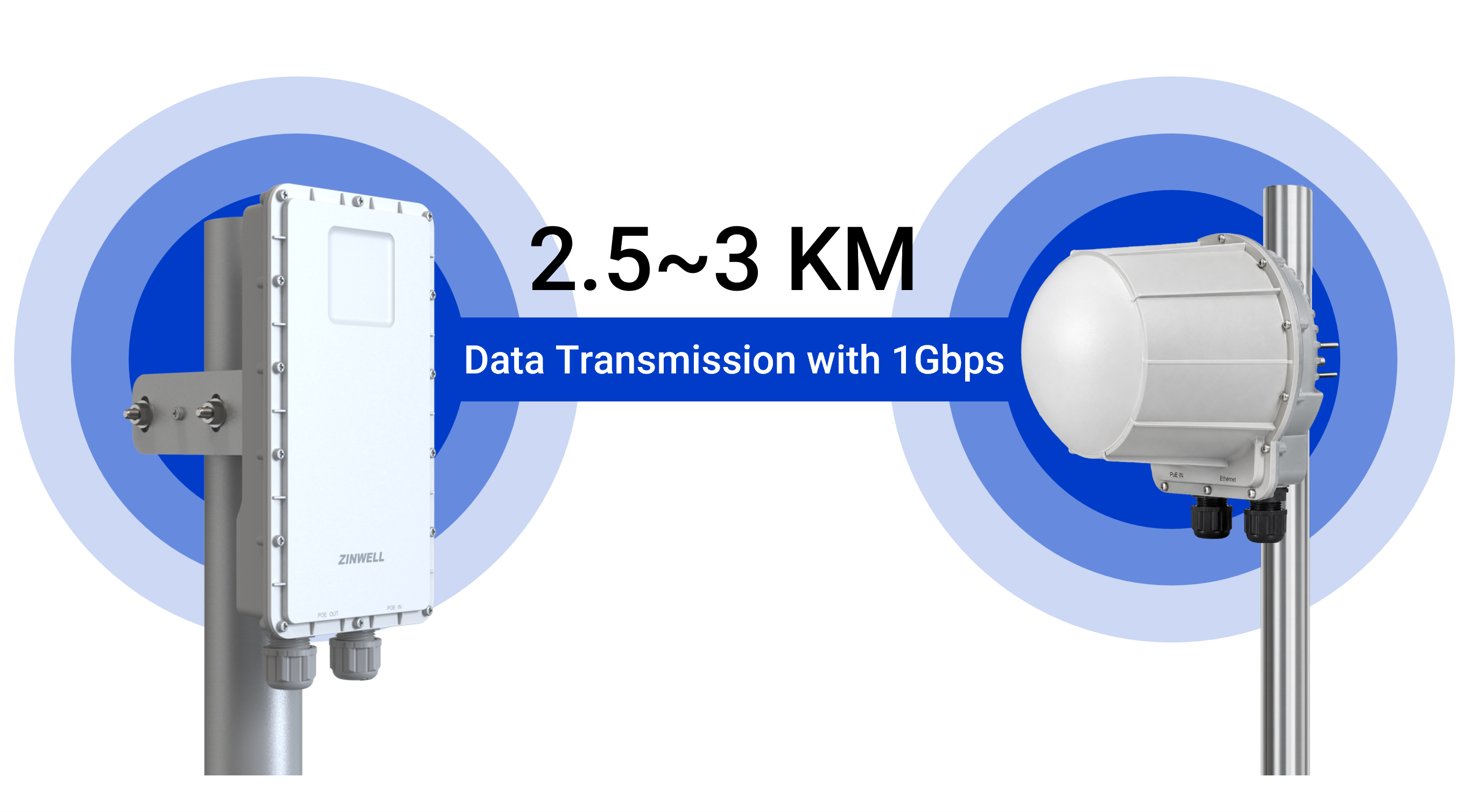

Point to Multi-Point Wireless Network
Supported Standards
Wireless Security
WPA3 Encryption, AES 128-bit Data Encryption
Standards Compliant
IEEE 802.3u/ab
Standard
IEEE 802.11ad
Networking
Ethernet Ports
LAN1: 10/100/1000 Mbps RJ-45 (Support PoE In)
LAN2: 10/100/1000 Mbps RJ-45 (Support PoE Out)
Technology
Antenna
Integrated PCB phased-array antenna with high-gain lens
3dB Beamwidth
LS: ±4.5°
LL: ±2.5°
Modulation / Coding
Support MCS1-12
Frequency Bandwidth
Up to 2.16 GHz
System
CPU
MediaTek MT7981B
Memory
DDR3 SDRAM 512 MB
Flash
SPI NAND FLASH 256 MB / SPI NOR Flash 1 MB
Bluetooth
Bluetooth 6.0 (BLE)
Power
Power Input
PoE 42.5~57 V
Power Rating
802.3at PoE+ 30 W
Power Consumption
Up to 30 W (PoE Out)
Max. ~18 W without PoE out
Chassis
Dimensions
LS:153 x 164 x 122 mm (Ultra-Slim Model)
LL:153 x 164 x 177 mm (Standard High-Performance Model)
Ambient
Operating Temperature
-30˚C to 60˚C
Storage Temperature
-30˚C to 85˚C
Waterproof
IP46
*Specifications are subject to change without notice
