Plug-In Module

ALSC-04 / DPX- Series / OTM- Series

ALSC-04 Automatic Level & Slope Control Modules

Adjusting Trimmer - To adjust the control point to a proper level position.
High / Low Switch - User can simply toggle the switch to position high or low depending on different channel loading.

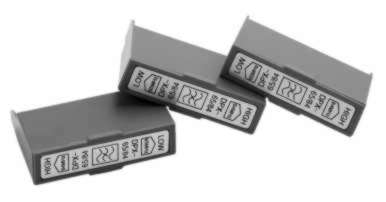

DPX- series Diplexer Modules
Optional diplexer modules with variety Reverse/Forward band split frequency:
30/47 MHz, 42/54 MHz, 55/70 MHz, 65/84 MHz, 85/105 MHz

OTM- series Jumper and Output Branch Modules

ALSC 04 upd

無標題文件

Description	ALSC-04
Frequency Range	47 ~ 1006 MHz
Controller Operative	Lo Level : 86 ~ 98 dBuV
Set Point Range	Hi Level : 96 ~ 106 dBuV
Temp. Drift Ref. to Set Point	± 0.005 dBc
Controller Error	± 0.02 dB
Control Range	± 4 dB
Reset Time	2 sec
Supply Voltage	15 V ± 5%
Current Consumption	60 mA ± 20%
Temp. Range	-20 ~ +70 °C
Impedance	75 Ω
Net Weight	18 g

DPX

無標題文件

Description		Freq. Range (MHz)	30/47G	42/54G	55/70G	65/84G	85/105G
Insertion Loss		5 ~ Fr	1.1	1.1	1.1	1.1	1.1
(dB, max.)		Fd ~ 1006	1	1	1	1	1
Isolation		5 ~ 150	45	45	45	45	45
(dB, min.)		150 ~ 300	40	40	40	40	40
		300 ~ 1006	30	30	30	30	30
		5 ~ Fr	20	20	20	20	20
Return Loss	Input	Fd ~ 400	20	20	20	20	20
(dB, min.)		400 ~ 1006	20	20	20	20	20
	Low	5 ~ Fr	20	20	20	20	20
	High	Fd ~ 400	20	20	20	20	20
		400 ~ 1006	20	20	20	20	20
Impedance			75 Ω
Dimensions			50.6 x 15.4 x 34 mm
Net Weight			10 g

Specification are subject to change without notice.
DPX-30/47G Fr= 30 MHz, Fd= 47 MHz DPX-65/84G Fr= 65 MHz, Fd= 84 MHz
DPX-42/54G Fr= 42 MHz, Fd= 54 MHz DPX-85/105G Fr= 85 MHz, Fd= 105 MHz
DPX-55/70G Fr= 55 MHz, Fd= 70 MHz

OTM 0 1

無標題文件

Description		Freq. (MHz)	OTM-0	OTM-4/4	OTM-6/2	OTM-10/1
Insertion Loss	IN - OUT	5 ~ 40	1 max.	4 max.	2.4 max.	1.5 max.
(dB)		40 ~ 862	1 max.	4 max.	2.7 max.	1.5 max.
		862 ~ 1006	1 max.	4 max.	2.7 max.	1.5 max.
Tap Loss (dB)	IN - TAP	5 ~ 40	-	-	6.5 ± 0.5	10 ± 0.5
		40 ~ 862	-	-	6.5 ± 0.5	10 ± 0.5
		862 ~ 1006	-	-	6.5 ± 0.5	10 ± 0.5
Isolation (dB)		5 ~ 40	-	20 min.	25 min.	30 min.
		40 ~ 862	-	20 min.	25 min.	25 min.
		862 ~ 1006	-	20 min.	25 min.	25 min.
Return Loss (dB)		5 ~ 40	18 min.	18 min.	18 min.	18 min.
		40 ~ 862	18 min.	18 min.	18 min.	18 min.
		862 ~ 1006	18 min.	18 min.	18 min.	18 min.
Impedance			75 Ω
Dimensions			25 x 30 x 7.5 mm
Net Weight			3 g
